Knowledge File Uploads

You can upload documents directly as knowledge sources, so an automation can reference runbooks, exported reports, or policy files without you pasting their contents by hand. Uploads are extracted to plain text and inlined into the automation's system prompt on every run — the same way pasted text blocks and URL sources are.

Uploading is done in the Advanced Builder's Knowledge and context step (Step 2), via the Upload document button in the Add knowledge card.

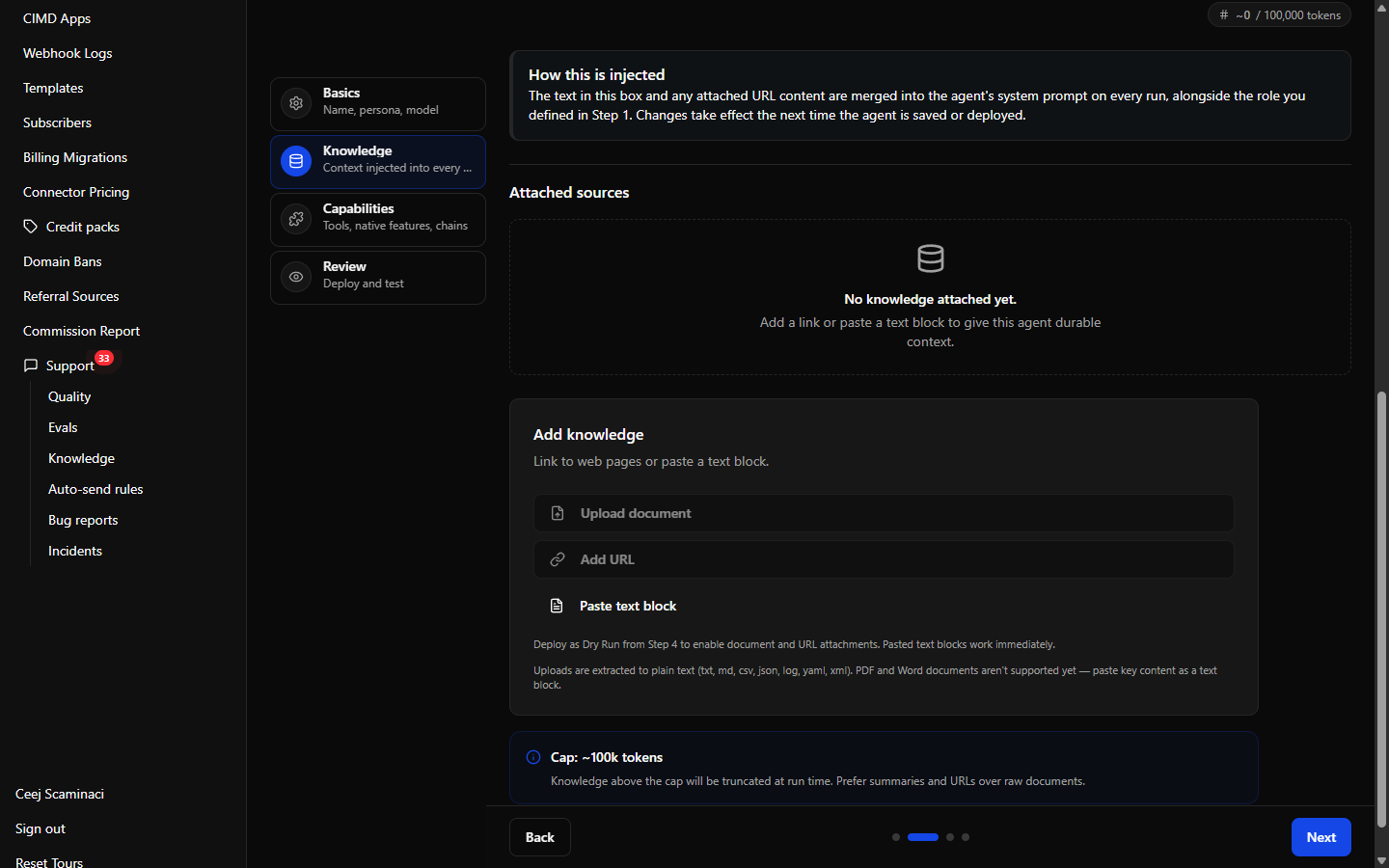

Builder "Add knowledge" card showing the Upload document, Add URL, and Paste text block buttons, with the accepted-formats (txt, md, csv, json, log, yaml, xml) and size-cap captions visible. Builder "Add knowledge" card showing the Upload document, Add URL, and Paste text block buttons, with the accepted-formats (txt, md, csv, json, log, yaml, xml) and size-cap captions visible.

Supported file types

Because the automation runtime ingests text only, every upload is extracted to plain text server-side and inlined into the prompt:

  • Documents: PDF, Word (.docx), Excel (.xlsx), and PowerPoint (.pptx) — their text is extracted on upload.
  • Text files: .txt, .md (Markdown), .csv, .tsv, .json, .ndjson, .log, .yaml / .yml, .xml — and other plain-text payloads.
  • Not supported: legacy binary Office (.doc, .xls, .ppt), images, and archives. If a document can't be read — for example a password-protected PDF or a corrupt file — the upload is rejected with a message; copy the key content into a text block instead (see Knowledge Sources).

A text file that is really binary but renamed to a text extension (for example a PDF saved as .txt) is detected and rejected too — the text upload path only accepts genuine text.

Limits

  • Up to 5 files per upload.
  • Up to 50 MB per file.
  • Up to 20 knowledge sources per automation, of any mix (text, URL, document), each with its own size limit.
  • All of them count toward the automation's system-prompt cap of about 100,000 characters (your instructions plus all knowledge) — the practical ceiling for a many-source automation. If the combined total goes over the cap, the add is rejected with guidance naming the largest sources, so prefer focused documents and summaries over raw dumps.

How to upload

  1. You can start attaching knowledge right away. Documents up to 10 MB, along with URLs and pasted text, stage in your draft before the automation exists and are attached automatically when you deploy. Documents larger than 10 MB can't be staged that way — deploy the automation first, then come back and upload them (the per-file limit at that point is 50 MB).
  2. Click Upload document.
  3. Select one or more text files (drag-and-drop or browse).
  4. Click Attach. Each file is uploaded, its text is extracted server-side, and it appears in the Attached sources list.

How uploaded content behaves

  • The file's text is extracted once, at upload time, and then inlined into the automation's system prompt on every run — it is not re-read from the original file later. To update the content, delete the source and upload the new version.
  • Uploaded sources appear in the Attached sources list alongside text blocks and URLs, with their label and size. Removing one deletes it server-side first, so the list never claims a source is gone while the automation can still see it.
